Setup Continuous Integration / Continuous Delivery pipeline

It is recommended to use a CI/CD pipeline to build and deploy your own BeamFi Vault. The following steps describe how to set up a pipeline using GitHub Action (opens in a new tab).

Setup GitHub Action

BeamFi Protocol Git repository comes with GitHub Workflow yml files which you can use to set up your CI/CD pipeline.

For example, to deploy to the production IC mainnet.

Use .github/workflows/prod.yml (opens in a new tab)

It has a simple workflow with two jobs, one for testing (by running 2 automated test scripts) and one for deployment.

test -> deploy

It is set to be run manually, so you can run it when you want to deploy to IC mainnet. You can also configure it to run in every commit / push.

⚠️

Note that this workflow assumes you have followed Deploy your own BeamFi Vault to create and deploy your own BeamFi Vault canisters to IC mainnet already.

name: BeamFi Prod CI / CD

on:
  workflow_dispatch:

jobs:
  test:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v3
      - name: Use Node.js
        uses: actions/setup-node@v3
        with:
          node-version: "16.19.1"
      - name: Install DFX
        run: echo y | sh -ci "$(curl -fsSL https://internetcomputer.org/install.sh)"
        env:
          DFX_VERSION: 0.13.1
      - run: dfx start --clean --background
      - name: Download vessel package management
        run: curl -L -o /usr/local/bin/vessel https://github.com/dfinity/vessel/releases/download/v0.6.3/vessel-linux64
      - run: chmod +x /usr/local/bin/vessel
      - name: Configure Escrow related canisters
        run: ./scripts/configure-local-escrow.sh
      - name: Update dfx.cfg for test
        run: npm run test:dfx:updateconfig
      - name: Update Env used by canister
        run: ./scripts/update-env.sh
        env:
          CLIENT_KEY: ${{ secrets.CLIENT_KEY_PROD }}
          MONITORAGENT_CANISTER_ID: ${{ secrets.MONITORAGENT_CANISTER_ID_PROD }}
          BITCOIN_NETWORK: ${{ secrets.BITCOIN_NETWORK_PROD }}
          ZOOM_SECRET_TOKEN: ${{ secrets.ZOOM_SECRET_TOKEN }}
      - name: Deploy Ledger in local DFX server
        run: ./scripts/deploy-local-ledger.sh
      - name: Revert Ledger Candid to public for building with other canisters
        run: npm run dfx:ledger:public
      - name: Deploy canister in local DFX server
        run: echo yes | dfx deploy
      - name: Run Beam Escrow Reentrancy test
        run: ./backend/test/test-claim-reentrancy.sh
      - name: Run Restart Beam test
        run: ./backend/test/test-restart-beam.sh

  deploy:
    needs: test
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v3
      - name: Use Node.js
        uses: actions/setup-node@v3
        with:
          node-version: "16.19.1"
      - name: Setup canisters
        run: ./scripts/setup-prod.sh
      - name: Install DFX
        run: echo y | sh -ci "$(curl -fsSL https://sdk.dfinity.org/install.sh)"
        env:
          DFX_VERSION: 0.13.1
      - name: Add DFX identity and wallets
        run: ./scripts/add-ic-identity.sh
        env:
          DFX_IDENTITY: ${{ secrets.DFX_IDENTITY_PROD }}
          DFX_WALLETS: ${{ secrets.DFX_WALLETS_PROD }}
      - name: Download vessel package management
        run: curl -L -o /usr/local/bin/vessel https://github.com/dfinity/vessel/releases/download/v0.6.3/vessel-linux64
      - run: chmod +x /usr/local/bin/vessel
      - name: Update Env used by canister
        run: ./scripts/update-env.sh
        env:
          CLIENT_KEY: ${{ secrets.CLIENT_KEY_PROD }}
          BEAM_CANISTER_ID: ${{ secrets.BEAM_CANISTER_ID_PROD }}
          BEAM_ESCROW_CANISTER_ID: ${{ secrets.BEAM_ESCROW_CANISTER_ID_PROD }}
          MONITORAGENT_CANISTER_ID: ${{ secrets.MONITORAGENT_CANISTER_ID_PROD }}
          BITCOIN_NETWORK: ${{ secrets.BITCOIN_NETWORK_PROD }}
          ZOOM_SECRET_TOKEN: ${{ secrets.ZOOM_SECRET_TOKEN }}
      - name: Build and deploy backend canisters to Internet Computer network
        run: ./scripts/deploy-canisters.sh
      - name: Show success mesg
        run: echo Congratulations! The build and deployment are successful.

CI / CD scripts

As you can see from the workflow yml file, it uses several scripts to setup and deploy including:

Script	Description
./scripts/configure-local-escrow.sh	Configure local Beam Escrow canisters for running tests
./scripts/update-env.sh	Update Env.mo using environment variables
./scripts/update-env.sh	Update Env.mo using environment variables
./scripts/deploy-local-ledger.sh	Deploy a local ICP Ledger for running tests
./scripts/setup-prod.sh	Setup canisters for production deployment
./scripts/add-ic-identity.sh	Create DFX identity and wallets for production deployment
./scripts/deploy-canisters.sh	Deploy Canisters to IC mainnet

Automated Test Scripts

Script	Description
./backend/test/test-claim-reentrancy.sh	Test Beam Escrow claim tokens reentrancy vulnerability
./backend/test/test-restart-beam.sh	Test Beam stop and restart

Setup GitHub Actions secrets

Before running the workflow, you need to set up GitHub Secrets for the following environment variables.

Environment Variable	Description
CLIENT_KEY_PROD	HTTPS API Request Client Key configured in [`Deploy your own BeamFi
Vault`](/docs/deploy/deployic)
DFX_IDENTITY_PROD	DFX identity used to deploy canisters. See below.
DFX_WALLETS_PROD	DFX wallet used to deploy canisters. See below.
BEAM_CANISTER_ID_PROD	Canister ID of Beam. Run `dfx canister --network ic ic beam` to find it.
BEAM_ESCROW_CANISTER_ID_PROD	Canister ID of Beam Escrow. Run `dfx canister --network ic ic beamescrow` to find it.
MONITORAGENT_CANISTER_ID_PROD	Canister ID of MonitorAgent. Run `dfx canister --network ic ic monitoragent` to find it.
BITCOIN_NETWORK_PROD	Bitcoin network used for testing. Simply use `Regtest`.
ZOOM_SECRET_TOKEN	Zoom Developer Account SDK secret token. Leave it empty.

Retrieve your DFX identity for DFX_IDENTITY_PROD Assuming you use icprod identity, run:

awk 'NF {sub(/\r/, ""); printf "%s\\r\\n",$0;}' ~/.config/dfx/identity/icprod/identity.pem

Put the output in GitHub Actions secrets DFX_IDENTITY_PROD.

Retreive your DFX Wallet for DFX_WALLETS_PROD

cat ~/.config/dfx/identity/icprod/wallets.json

Get the output and replace the identity name with "default".

E.g. if the identity name is icprod, change icprod to default in the JSON.

Output:

{
  "identities": {
    "icprod": {
      "ic": "xxxxxx"
    }
  }
}

Change to:

{
  "identities": {
    "default": {
      "ic": "xxxxx"
    }
  }
}

Put the output in GitHub Actions secrets DFX_WALLETS_PROD.

Run the workflow

Now you have everything ready, run the workflow action manually from your GitHub repo Action page. It looks like BeamFi Main Vault - GitHub Actions (opens in a new tab).

It will take about 5 minutes to complete the workflow.

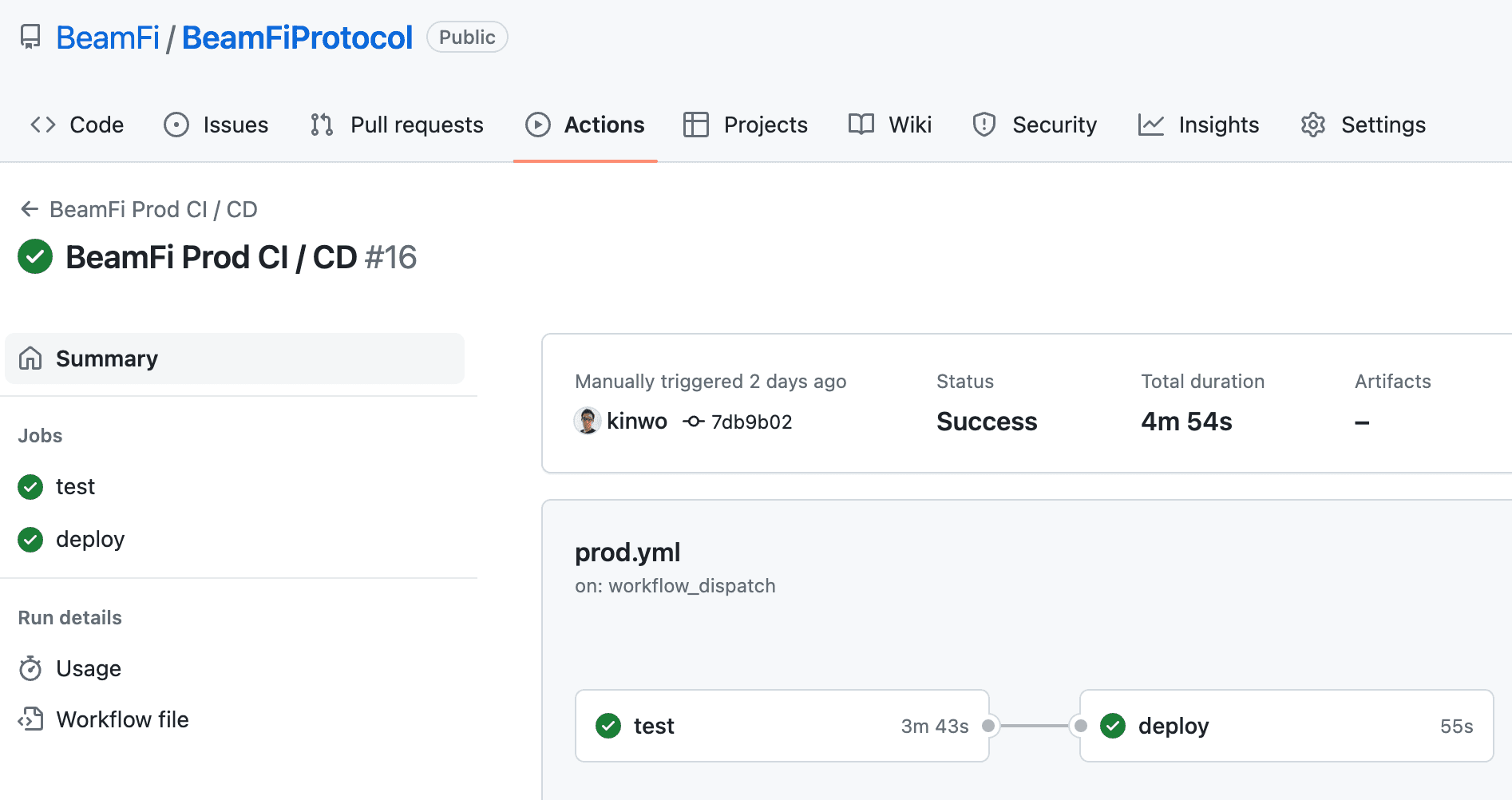

BeamFi Production Workflow GitHub Action
